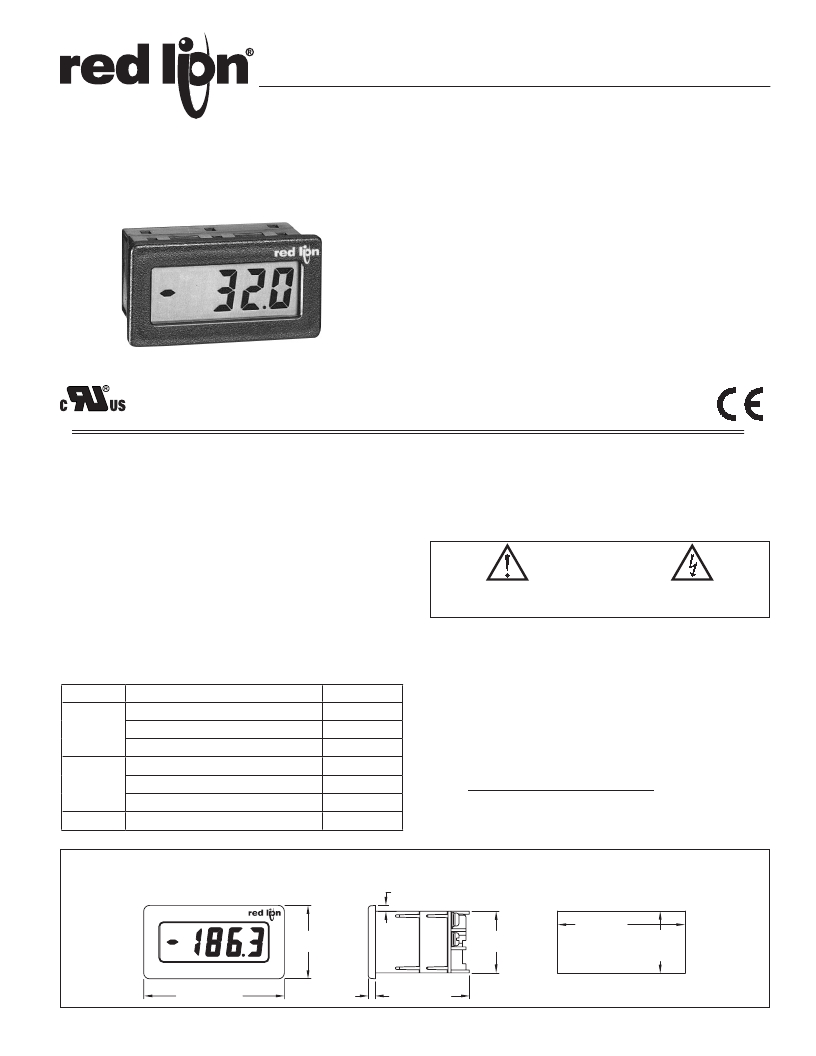

Bulletin No. CUB4V/I-K
Drawing No. LP0256
Released 03/13
Tel +1 (717) 767-6511
Fax +1 (717) 764-0839
www.redlion.net
MODEL CUB4 I - MINIATURE D.C. CURRENT METER
MODEL CUB4V - MINIATURE D.C. VOLTMETER
&
? LCD, POSITIVE REFLECTIVE OR NEGATIVE TRANSMISSIVE
WITH YELLOW/GREEN OR RED BACKLIGHTING
? FOUR SELECTABLE D.C. RANGES
0 to 199.9 mV, 1.999 V, 19.99 V, 199.9 V (CUB4V)
0 to 199.9 μA, 1.999 mA, 19.99 mA, 199.9 mA (CUB4I)
? 0.6 INCH (15.2 mm) HIGH LCD DIGITS
? BUILT-IN SCALING PROVIDED
? AUTO ZEROING CIRCUIT
? SELECTABLE DECIMAL POINTS
? WIRE CONNECTIONS MADE VIA SCREW CLAMP TYPE
TERMINALS
? FITS DIN STANDARD CUT-OUT 2.68" (68 mm) x 1.30" (33 mm)
UL Recognized Component,
File # E179259
DESCRIPTION
The CUB4 Volt and Current Meters are designed and manufactured using the
latest technology for a high quality, compact, affordable instrument for use in
industrial environments. Each unit has a 3?-digit LCD display with 0.6 inch
(15.2 mm) high digits and a DIP switch selectable decimal point. The displays
are available in positive image reflective (black digits, reflective background) or
negative image transmissive (illuminated digits, dark background) with red or
yellow/green backlighting.
The units are constructed of a lightweight, high impact plastic case with a
clear viewing window. The sealed front panel meets NEMA 4X/IP65
specifications for wash-down and/or dusty environments, when properly
installed. A CUB4V or CUB4I unit can be mounted in the same panel cutout as
the CUBVD and CUBID units.
The optional Micro Line/Sensor Power Supply (MLPS1000) is designed to
attach to the rear of an installed CUB4V or CUB4I to provide the necessary power
for the unit. The optional supply can be powered from a 85-250 VAC source.
ORDERING INFORMATION
MODEL NO. DESCRIPTION PART NUMBERS
DC Voltmeter CUB4V000
CUB4V DC Voltmeter W/Yel-Grn Backlighting CUB4V010
DC Voltmeter W/Red Backlighting CUB4V020
DC Current Meter CUB4I000
CUB4I DC Current Meter W/Yel-Grn Backlighting CUB4I010
DC Current Meter W/Red Backlighting CUB4I020
MLPS Micro Line/Sensor Power Supply MLPS1000
? NEMA 4X/IP65 SEALED FRONT PANEL BEZEL
? 9 TO 28 VDC POWERED
SAFETY SUMMARY
All safety related regulations, local codes and instructions that appear in the
manual or on equipment must be observed to ensure personal safety and to
prevent damage to either the instrument or equipment connected to it. If
equipment is used in a manner not specified by the manufacturer, the protection
provided by the equipment may be impaired.
CAUTION: Read complete CAUTION: Risk of electric shock.
instructions prior to installation
and operation of the unit.
SPECIFICATIONS
1. DISPLAY: 3?-digit (-1999 to 1999), 0.6" (15.2 mm) high digits. Minus (-)
sign is displayed when voltage or current is negative.
2. DECIMAL POINTS: DIP switch selectable decimal points allow the display
to be read in tenths, hundredths or thousandths.
3. POWER REQUIREMENTS:
Reflective Versions : 9 to 28 VDC at 4 mA max.
Backlight Versions : 9 to 28 VDC @ 35 mA typ., 50 mA max. Above 26
VDC, derate operating temperature to 50°C.
4. INPUT RANGES:
D.C. VOLTAGE D.C. CURRENT
(DIP Switch Selectable)   (JMPR. Selectable)
±199.9 mVDC ±199.9 μADC
±1.999 VDC ±1.999 mADC
±19.99 VDC ±19.99 mADC
±199.9 VDC ±199.9 mADC
DIMENSIONS In inches (mm)
Note: Recommended minimum clearance (behind the panel) for mounting clip
installation is 2.15" (54.6) H x 3.00" (76.2) W.
.13 (3.3)
PANEL CUT-OUT
2.95 (74.9)
1.54 (39.1)
.15 (3.8)
1.96 (49.8)
1.29 (32.8)
-.000
-.0
2.68 +.025
(68 +.8 )
-.000
-.0
1.30 +.024
(33 +.6 )
1
